Purposely designed hood in conjunction with high rotor and cutting speeds and a removable “Shark Fin” shredding bar spreads the shredded material evenly behind the roller giving an excellent Cut and Shredding Quality.
Manufactured from High Quality QSt/E Steel with Headstock Cat.III for Rear mounting.
Patented removable shredding bar system (Shark Fin)
Market-leader in foreign object thrown test results
Hydraulic parallelogram side shift: 296cm

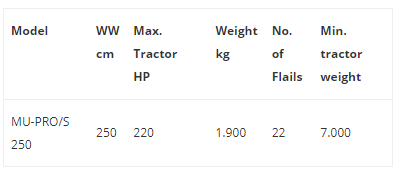

Over all Working range: up to 546cm (see chart)
Working angle 90 degree up to 60 degree down.
Gearbox with integrated over run clutch for 1000 r.p.m.
Belt protection with tension measuring slot.
Hood Wear plate
Wearing skids
Hydraulic Safety Break Away System and hydraulic transport lock at an angle of 90 degree with shut-off tap.
High tempered “M” Hammer flails to ensure clean cut and maximum shredding using less power.
Well balanced spiral Rotor with specially formed flail lugs to protect against damage from obstacles and internal bearings protecting against dirt, wear and tear.
Patented removable shredding bar – System: “Shark fin”.
Roller with internal bearings and well-rounded edges to preserve the soil and turf and to carry the flail, adjustable to different heights.
High tempered one way spring steel protection flaps in front of the mower hood.
Stand
Optimised distance between the outer rotor circle and the roller guarantees perfect contour following and an even quality of cut.
P.T.O. shaft with cap bottom lubrication.
Options
Second patented removable shredding bar – System: “Shark fin”
Warning signs and lights (dealer fit).
Working hours meter with hydraulic sensor
Alternative flails and rotor systems (3 back to back Flails, M Shackle Flails).
