30-42m3 Giga-Vitesse CFS Forage Wagon

High-performance silage wagons are facing increasing demands with regard to higher efficiency, also when in competition with forage harvesting. As well as this, low drag resistance and low power requirement are called for when using professional forage wagons. The Strautmann Giga Vitesse CFS with its new conveying unit (Continuous Flow System) is now providing an almost unrivalled product for contractors and large businesses. This forage wagon is setting standards with regard to optimum loading, low power requirement and cost effectiveness.

The Giga-Vitesse CFS, is continuing the successful path which Strautmann has pursued since the introduction of the Giga-Vitesse. A high-performance conveying assembly with a unique cutting unit, together with a solid body and a variety of chassis types for most different conditions have gained an excellent reputation over the years.

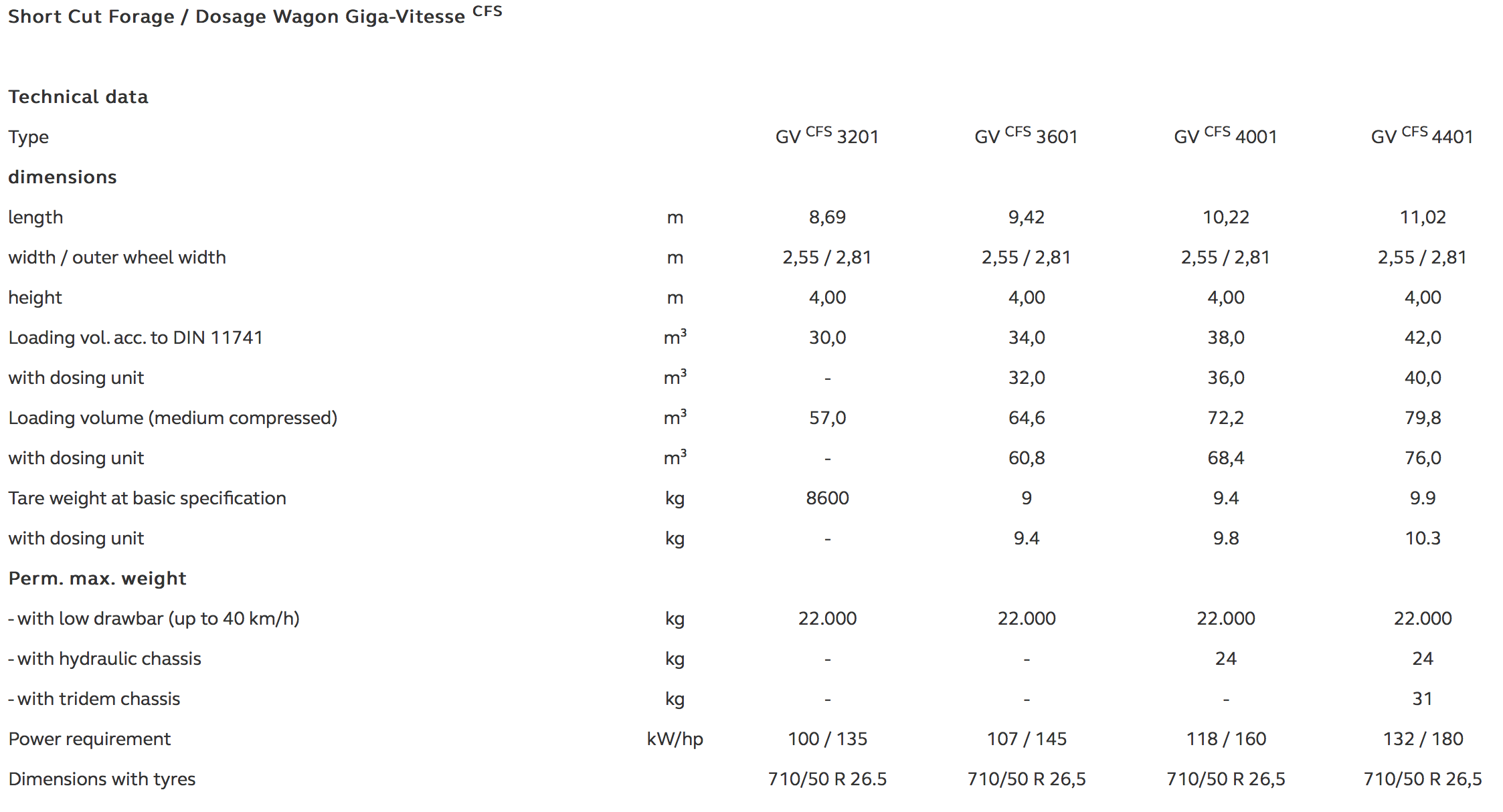

  • Loading capacity according to DIN of 30 – 42 m³
  • CFS accelerator drum
  • Double benefit
  • Spiral rotor with tine plates
  • 45-knife cutting unit
  • Power required from 93/126 kW/HP
  • 2m Pick-up
Brand name: Strautmann
Model name: 30-42m3 Giga-Vitesse CFS Forage Wagon
Continous-Flow System (CFS)
CFS Spreading-out effect
CFS Feed rotor
CFS Cam-less pick-up
CFS Drum
45-knife cutting unit
Chassis
Pick-up guide wheels
Robust body
Hydraulic folding drawbar
Transport floor
ISOBUS control
Tailgate
Slip clutch
Unloading options

Instead of the knife being pressured into the rotor, the knife is set up with a cam clutch tyre system. The spot-on triggering, without the spring counter tension, means a foreign object will trigger the knife to roll out of the work position, thus only blunting or damaging one point on the blade. A conventional knife protection will cause the foreign object to travel the entire length of the blade before releasing it, blunting or braking a large portion of the blade.
